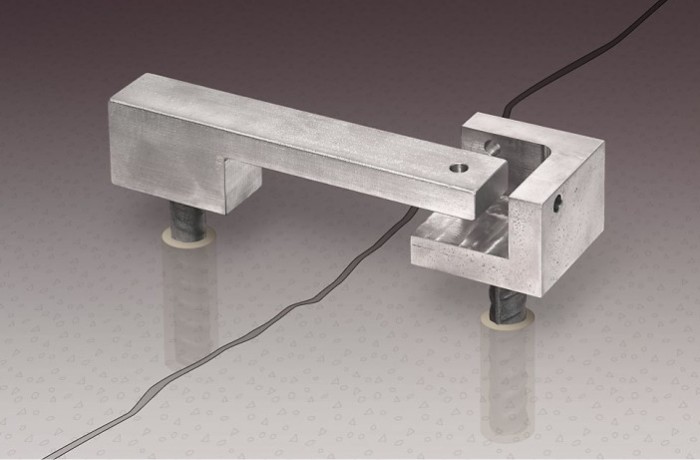

The Model 4415 3-Dimensional Crackmeter is a simple and rugged instrument designed to manually measure the displacement across cracks and/or expansion joints in three directions.
Specifications
| Mechanical Range | 0-12.5 mm, in each X, Y, Z axis |
| Distance Between Anchors | 12.5 mm nominal |
| Material | stainless steel |
| Anchors | #4 rebar |
| Anchor Dimensions (Ø × H) | 12 mm × 150 mm |
