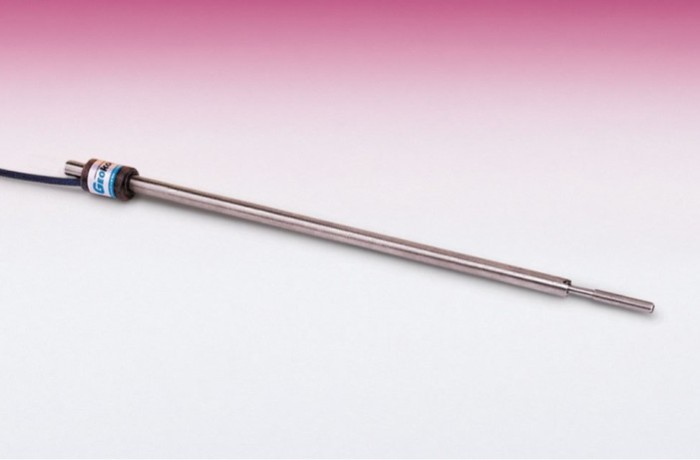

The Model 4450 Displacement Transducer provides remote readout capability for borehole extensometers. They are particularly useful where other types of vibrating wire sensors are used and/or for installations where long cable runs are required. The Model 4450 can also be installed between borehole anchors, in conjunction with the requisite length connecting rod, to provide a permanent, in-place incremental extensometer.
Specifications
| Standard Ranges¹ | 12.5, 25, 50, 100, 150, 200, 250, 300 mm |
| Resolution | 0.025% F.S. |
| Accuracy² | ±0.1% F.S. |
| Nonlinearity | <0.5% F.S. |
| Temperature Range¹ | −20°C to +80°C |
| Lengths³ × Coil Diameter | 210, 217, 297, 409, 526, 593, 681, 814 mm × 19 mm |
¹Other ranges available on request.
²Accuracy established under laboratory conditions.
³Length with shaft fully retracted.
