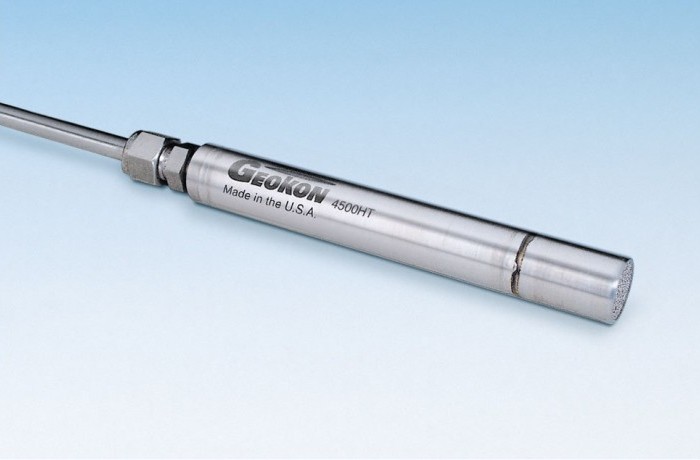

The Model 4500HT High-Temperature Piezometer is designed for applications where the temperature may be as high as 230°C. Two versions are available: one for continuous use up to 200°C, and one for up to 230°C. These sensors are supplied with either mineral insulated cables or Teflon® cables inside stainless steel tubing.*
Specifications
| Standard Ranges | −100 to 700 kPa; 1, 2, 3, 5, 7.5, 10, 25, 50, 75, 100, 150 MPa |
| Over Range | 2 × rated pressure |
| Resolution | 0.025% F.S. (minimum) |
| Accuracy | ±0.1% F.S. |
| Linearity | <0.5% F.S. (±0.1% F.S. optional) |
| Temperature Range | 0°C to +250°C |
| Length × Diameter | 188 × 19 mm (−100 to 700 kPa; 1, 2, 3, 5 MPa) 210 × 25 mm (7.5, 10, 25, 50, 75, 100, 150 MPa) |
