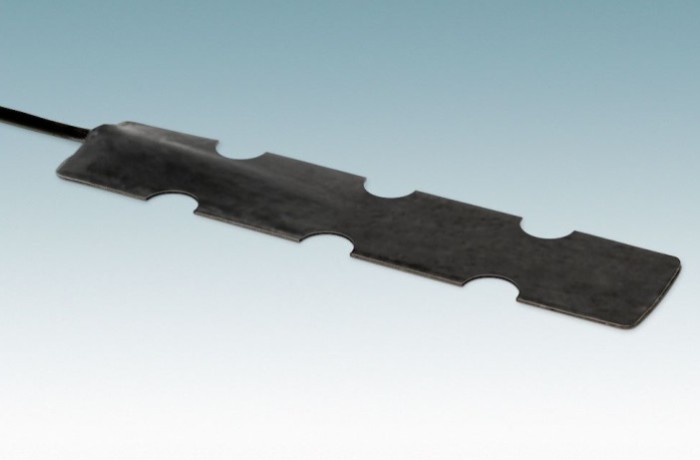

The Model FP4000 Fiber Optic Strain Gages are designed for use in environments where it may be difficult to use conventional types of strain gages because of space considerations, high levels of electrical interference or where intrinsic safety is an issue. Measurements of dynamic events are also possible with these gages and the requisite dataloggers. The strain gages have a very low coefficient of thermal expansion and can be used to measure both mechanical and thermo-mechanical strains in a variety of different materials.
Specifications
| Standard Ranges | FP4000-1.0 | −1000 to +1000 µε FP4000-2.5 | −2500 to +2500 µε FP4000-5.0 | −5000 to +5000 µε |
| Resolution | FP4000-1.0 | 0.15 µε FP4000-2.5 | 0.30 µε FP4000-5.0 | 0.50 µε |
| Gage Factor Accuracy¹ | FP4000-1.0 | ±3% F.S. FP4000-2.5 | ±3% F.S. FP4000-5.0 | ±10% F.S. |
| Temperature Sensitivity | 0.85 to 1.22 µε/°C |
| Strain Sensitivity | transverse strain insensitive |
| Operating Range² | −40°C to +80°C |
| L × W × H | 100 × 25 × 1 mm |
¹The accuracy of the OSP sensors is determined by sample testing of controlled batches at the factory. The manufacturing technique results in the spans shown above and is confirmed by actual strain tests performed on samples from batch lots.
²Other ranges available on request.
